Product description: Switch brake

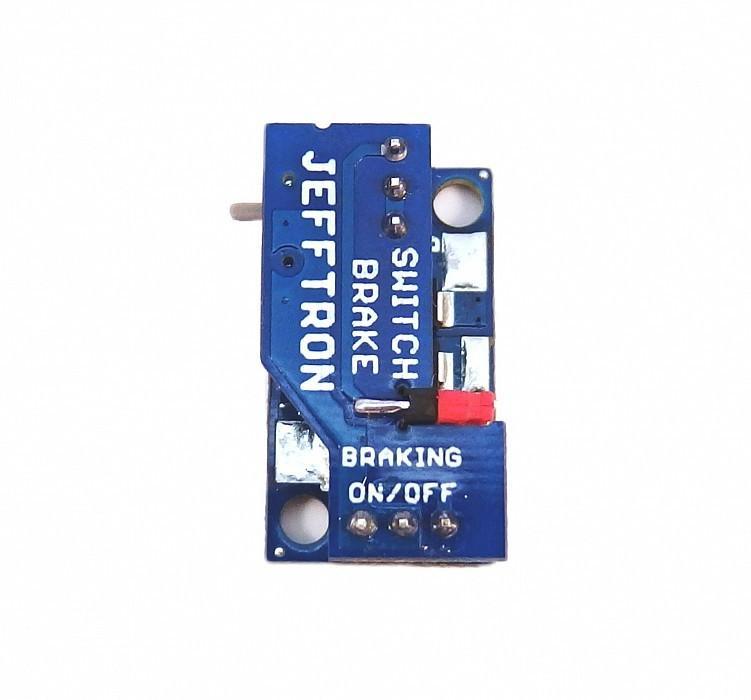

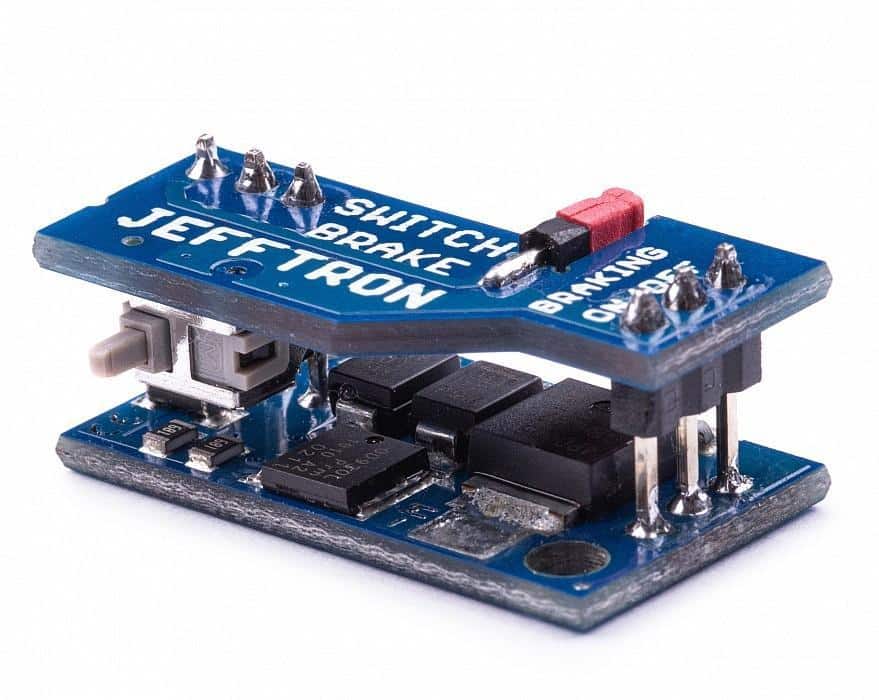

Professionally made mosfet with active braking, which can be disabled by removing red jumper.

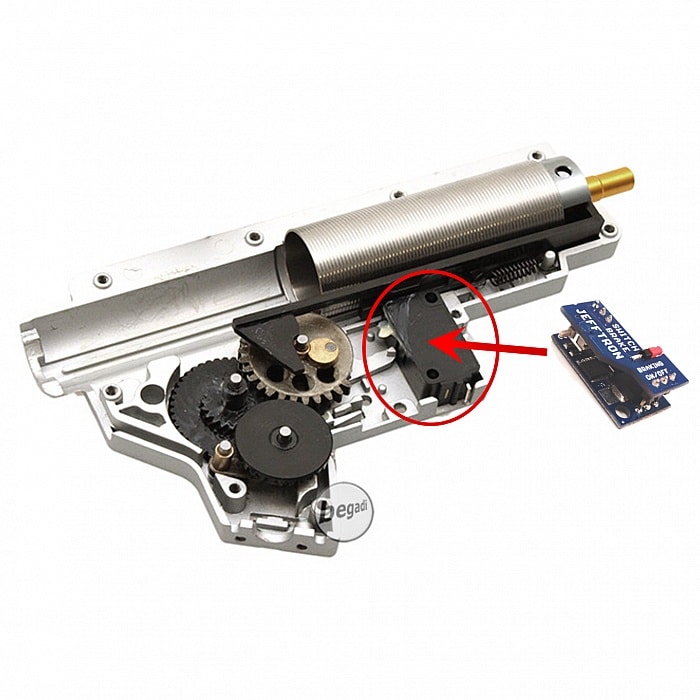

Device is designed to replace microswitch in the specific gearbox V2.
There is no modification needed.
In semi fire mode piston isn’t partially stretched, spring is fully released, parts in mechabox aren’t under strain and nozzle locks hop-up chamber in greater part (depends on ROF).
Active break solves multiple shots in semi mode with weapons with very high rate of fire (ROF).
Device increases gun rate of fire and battery holds longer, than with basic wiring.

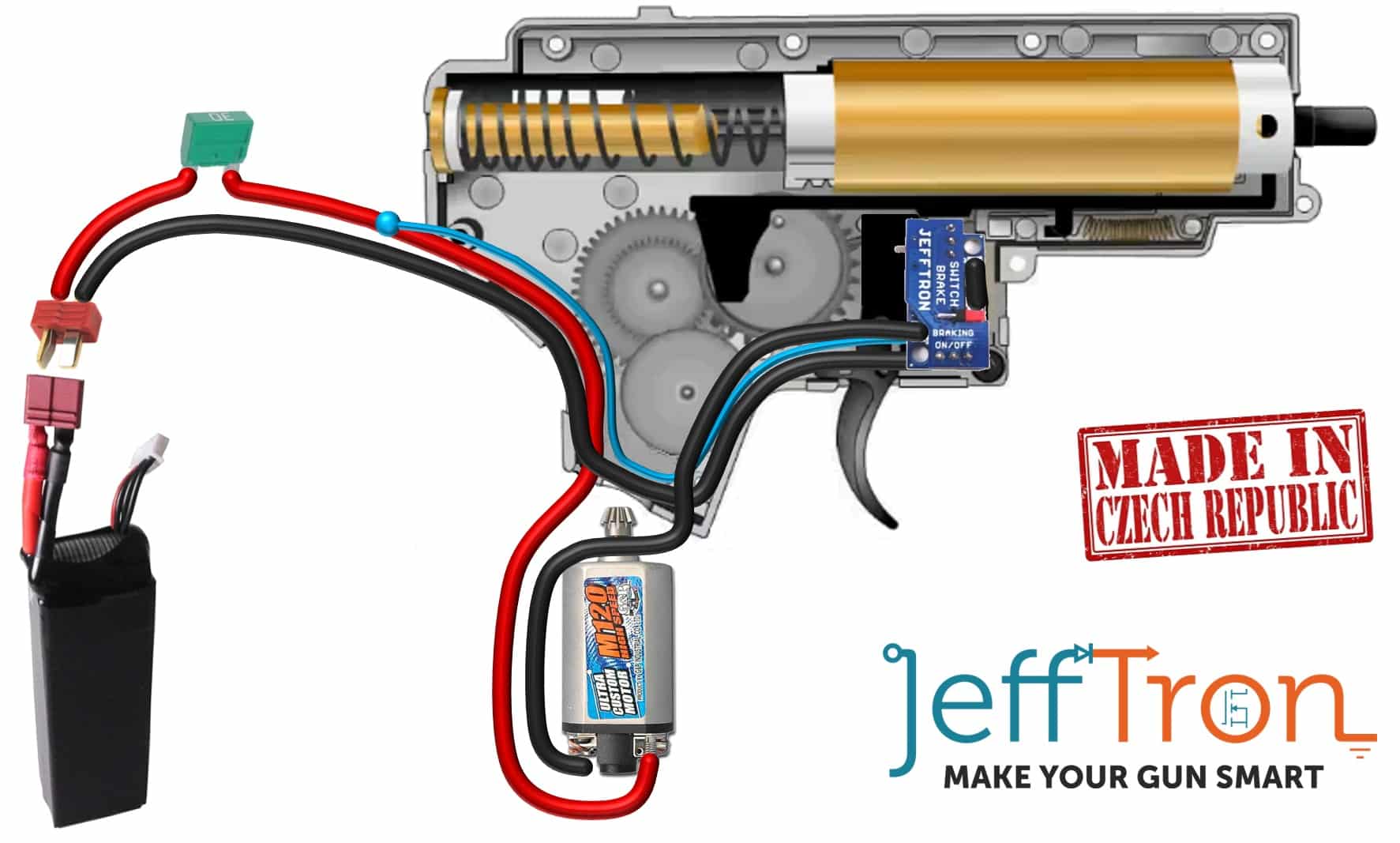

– Easy installation inside the gearbox version 2, which replace microswitch
– Devices without wires, you can use max. 1,5qmm (AWG16) power wires and 0,5qmm (AWG20) signal wires
– Suitable for service center, if you are not familiar with soldering to the circuit board, choose device with wiring and accessories

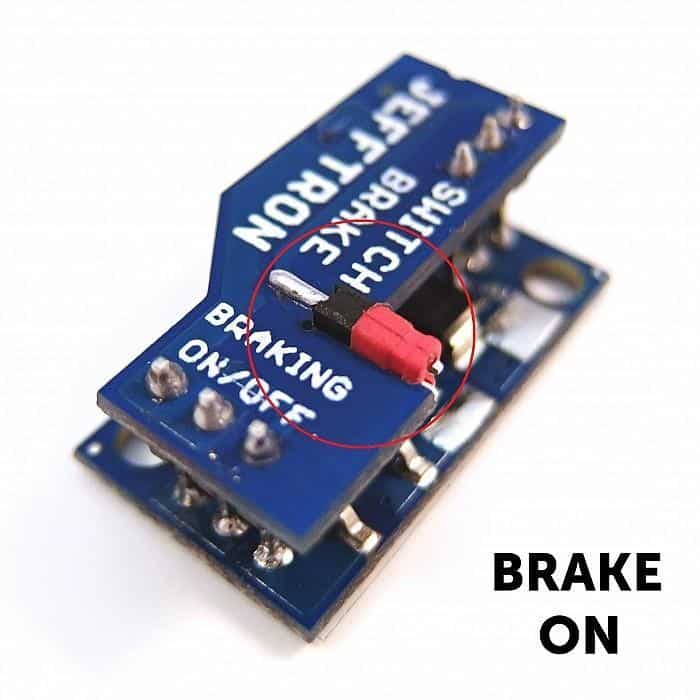

– Disable active braking by unplugging red jumper, when you gun has Rate of fire under 20bb/s, otherwise it could lock up trigger on SEMI due too low gear speed.
– Motor will be under less stress without active braking.
– Designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s)
– Specified for common batteries up to 17V (Ni-xx 8.4 – 12V, lipol 7.4 – 14.8V)
– Active braking uses the excess energy from the motor to stop it. The braking effect is the most powerful with high torgue motor
– In auto fire mode piston stops in random position due the mechabox design
– For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox
DEVICE INSTRUCTIONS: you can download an installation manual in English here [1.27 MB]
PACKING: device and installation manual in English
WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!
