Description

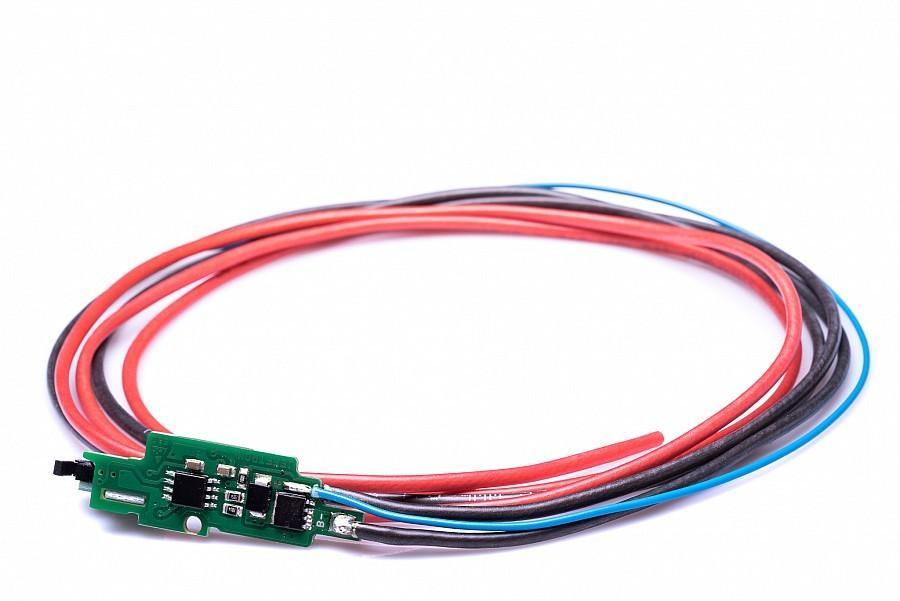

Product description: Mosfet II
Professionally made mosfet designed for airsoft electric guns (AEG).
Device increases gun rate of fire and battery holds longer, than with basic wiring.
SPECIFICATIONS:
– Very small device dimension, it fits nearly everywhere
– Devices without wires, you can use max. 1,5qmm (AWG16) power wires and 0,5qmm (AWG20) signal wires

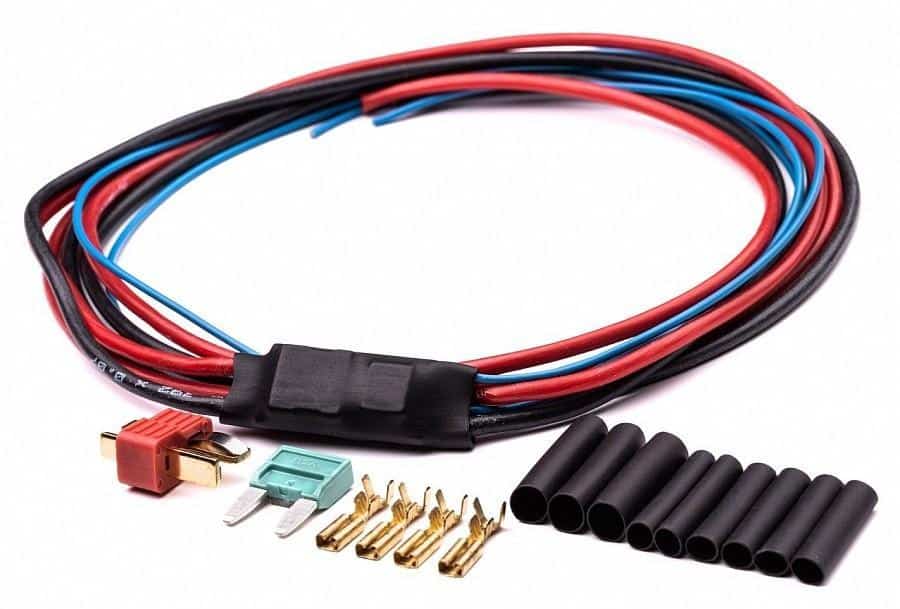

– Suitable for service center, if you are not familiar with soldering to the circuit board, choose device with wiring and accessories
– Designed for spring up to M210 (equivalent for current 150A single shot fire or 50A burst fire for max. 30s)
– Specified for common batteries up to 17V (Ni-xx 8.4 – 12V, lipol 7.4 – 14.8V)
– 6 wires connection
– Device size 25x12x7mm
– No current consumption in the idle mode
– No sparking on switch contacts
– In auto fire mode piston stops in random position due the mechabox design
– For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox
DEVICE INSTRUCTIONS: you can download installation manual in English here [PDF, 725.46 kB]
PACKING: device, heat shrink tube and installation manual in English
WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!

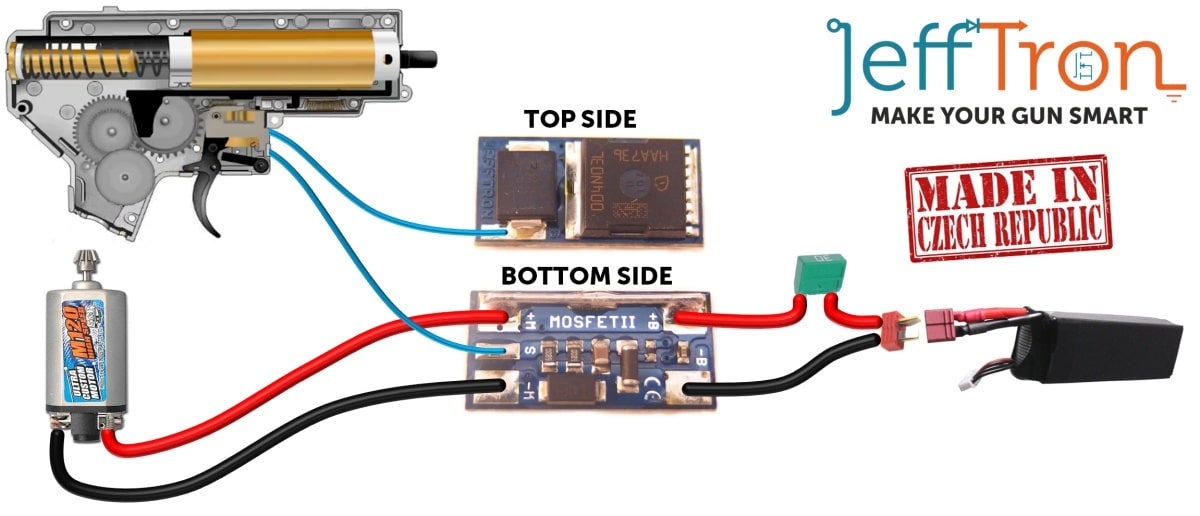

WIRING CONNECTION INTO THE GUN:

Modified connection diagram for weapon AUG or P90
